Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Nilai beban: | 10ton | Tipe tampilan: | LCD |
---|---|---|---|
Sumber Daya listrik: | 220V / 50HZ atau 110v 60HZ | Tipe: | Skala Derek |
Tempat asal: | Cina | ||

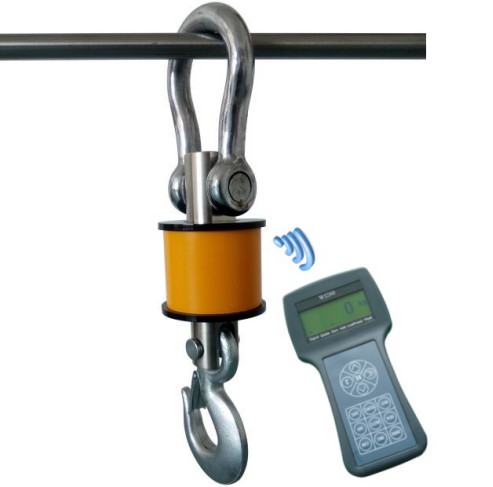

Cahaya Tinggi: | 10t Electronic Crane Scale,LCD timbang gantung digital |
Specifications:
Dimension:
Type | Cap. | Index Value | Division | Dimension (mm) | Weight | ||||||
Ton | Kg | B | C | D | E | F | G | H | Kg | ||
CS-SWB2 | 1t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 |
2t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
3t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
5t | 2 | 2500 | 120 | 108 | 680 | 88 | 75 | 60 | 50 | 15 | |
10t | 5 | 2000 | 120 | 108 | 780 | 114 | 95 | 71 | 60 | 27 |
Description:
Accuracy class according to international standard three scales .
Battery charging time of about 70 hours working time
Safe overload 150% F.S
Destruction of overloading 300% F.S
Operating temperature -10 ~ 50 ℃
Environment Humidity <90% R.H
Monitor specifications 5 30mm (1.2 " ) LED high brightness displays.
Reading stabilization time <3S
Remote distance <25M
WI280 receive Indicator:
Interval Value:1/2/5/10/20/50/100
Display:192*64 dots display;6 status indicators(backlight)
Power: Lithium Battery, use 48 hours for one Charging
Environment temperature: Scale body -10℃~50℃;Instrument 0℃~40℃
Maximum wireless transceiver distance:>300m(open area)
Radio frequency:434MHz
Applications:
1. vehicle lifting
2. Railway terminal, iron and steel metallurgy, energy mines, factories, mines and other enterprises in the field of heavy cargo loading and unloading weighing.
Competitive Advantage:
1. your inquiry and e-mai will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first.
