fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Tipe: Skala Gandar, pad aluminium

Sumber Daya listrik: 220V / 50HZ

Tipe tampilan:: LCD atau LED, LCD

Aman Kelebihan:: 120% FS

Bahan: Aluminium

Nilai beban: 20t / 30t / 40t

Ketepatan: 5kg / 10kg / 20kg

Menyoroti:

Timbangan Truk Portable OEM

Timbangan Mobil Aluminium Portable

Informasi dasar

Place of Origin: China

Nama merek: SKYERSCALE

Sertifikasi: CE

Model Number: AS001

Syarat-syarat pembayaran & pengiriman

Packaging Details: Aluminium box, carton

Delivery Time: 15days

Supply Ability: 500pcs/M

Galeri

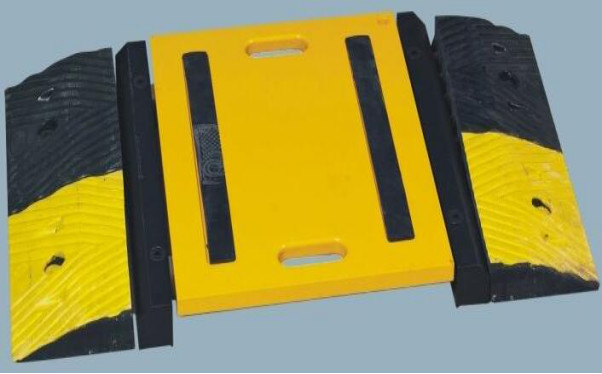

Timbangan Berat Mobil Portable Aluminium Alloy

Deskripsi Produk

Weighing in motion systems wireless portable truck axle load weight scales for sale

Specifications:

Configuration table:

Model	Size(A×B×C) (mm)	Capacity (Double Pads for One Axel)	Description(Each Pad)
AS001	350×350×35	1000/2000/3000Kg	4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg
	400×500×56.5	3000/5000/6000/10000Kg	4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg
	450×700×56.5	10000/20000/30000Kg	4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg
	500×900×56.5	20000/30000/40000Kg	4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg

Outline Dimension (mm):

Product Parameters:

Rated load:1/2/3/5/6/10/20/30/40T	Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h)	Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5	Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1	Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2	Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2	Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05	Safe overload(%): 120
Zero balance(%F.S): ±1	Ultimate overload(%): 150
Excitation voltage(VDC): 9~15	Net weight(kg): 45
Recommended voltage(V): 10	Defend grade: IP66

Description:

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

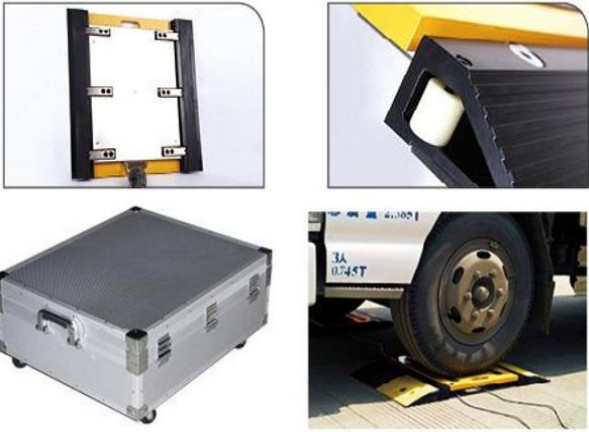

Timbangan Berat Mobil Portable Aluminium Alloy 1

Timbangan Berat Mobil Portable Aluminium Alloy 2

Applications:

1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.

3. Measuring weight for special purpose.

Competitive Advantage:

1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
