IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator

1
MOQ
Dapat dinegosiasikan
harga
IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
jenis:: Terminal untuk timbangan lantai, timbangan bangku
Tipe Tampilan: LCD
Bahan: Kasing plastik
Ketepatan: 300000
Catu Daya: 220V 50HZ atau 110V 60HZ
Nama: indikator sel beban digital
Menyoroti:

LCD load cell weighing indicator

,

LED display weighing indicator

,

digital weight indicator with warranty
Informasi dasar
Tempat asal: Tiongkok
Nama merek: SKYERSCAL
Nomor model: In520
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: karton
Waktu pengiriman: 15-20 hari
Menyediakan kemampuan: 1000pcs/m
Deskripsi Produk
IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator
Standard Function:
  • gh precision A/D conversion with readability 1/30000
  • AC/DC power supply, with inside rechargeable battery 6V/1.2AH
  • Able to setup zero-tracking range
  • Able to setup print function
  • Standard RS232 communication interface with selectable baud rate and communication method
  • Optional bluetooth function
Model IND-EL
Display 6 digits LCD
Capacity 1-800000kg
Verified counts 1/30000-1/60000
A/D conversion method ∑—△
A/D conversion speed 8 times/sec
Max. A/D conversion bits 24
Input signal range -20mV～20mV
Input sensitivity ≥0.02 μ V/e
Load cell excitation DC 5V: 1 ≤150mA
Max. connection number of load cell 8 at 350 ohm
Load cell connection mode 4 wire, auto compensation for long distance ≤ 10 meters
Temperature 0°C to +40°C / +32°F to +104°F
Power supply AC 12V/500mA ; DC inside rechargeable 6V/1.2AH battery//Option:Lithium battery
Calibration Manual calibration
Calibration weight 0-100% Cap.
Appearance ABS
Scale size(w x d x h) 210x115x55mm
Net weight/Package 0.75kg/16pcs

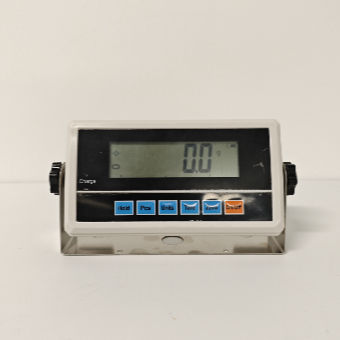

Weighing display


IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator 0IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator 1IN520 Weighing Indicator Load Cell Display, LCD/LED Display Load Cell Weighing Indicator 2Competitive Advantage:
  1. Professional manufacturer with 10 years
  2. OEM/ODM service acceptable
  3. 100% inspection
  4. Warranty: one year
