Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nilai beban: | 15ton | Tipe tampilan: | LED dan LCD |
|---|---|---|---|
| Sumber Daya listrik: | 220V / 50HZ | Nama: | Skala Derek |
| Cahaya Tinggi: | 15t Crane Weighing Scale,skala berat kait kail |
||
Specifications:
| MODEL | Max. capacity(kg) | Min. weigh(kg/) | Division(kg) | Total counts (n) |
| OCS-EH-1 | 1000 | 10 | 0.5 | 2000 |
| OCS-EH-2 | 2000 | 20 | 1 | 2000 |
| OCS-EH-3 | 3000 | 20 | 1 | 3000 |
| OCS-EH-5 | 5000 | 40 | 2 | 2500 |
| OCS-EH-10 | 10000 | 100 | 5 | 2000 |
| OCS-GH-15 | 15000 | 100 | 5 | 3000 |
Min distance between scale and high temperature:
| 1000℃ | 1200℃ | 1400℃ | 1600℃ |
| 1.6m | 1.8m | 2m | 2.2m |

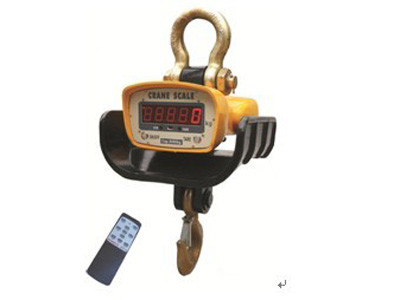

Appearance illustration:
Description:
1. Multi-weighing units:
Kg, lb, N are selectable, generally kg are default unit.
2. Multi-function operation: Tare；Zero；Auto zero tracking；Total；Hold; Overload warning,
operation through remote controller functions.
3. User-friendly design: Cast aluminum housing and aluminum front panel for maximum
protection; Large red 5 digit LED display (digit height 30mm); Safety factor up to 4 times capacity; Battery Operated with low battery indication; Automatic switch-off
power-saving function.
4. Main technical data
| Standard | According to OIML class III |
| Display | 30mm (1.2’’) 5digits LCD/LED |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤10 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 150% F.S. |
| Ultimate Load | 700% F.S. |
| Battery Life | ≥70 hours |
| Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
| Adapter | DC9V/1000mA |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Battery of Remote Controller | 7# battery, 1.5Vⅹ2 |
Applications:
1. vehicle lifting
2. Weighing functions
Competitive Advantage:
1. your inquiry and e-mail will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first!
