| Bahan: | Baja paduan | Teori: | Sensor resistensi |
|---|---|---|---|
| Keluaran: | SENSOR Analog | Pemakaian: | Sensor Konsumsi |
| Nama: | sel beban gaya rendah | Nilai beban: | 50 t |
| Cahaya Tinggi: | 30t Beam Type Load Cell,sel beban balok geser ganda |
||

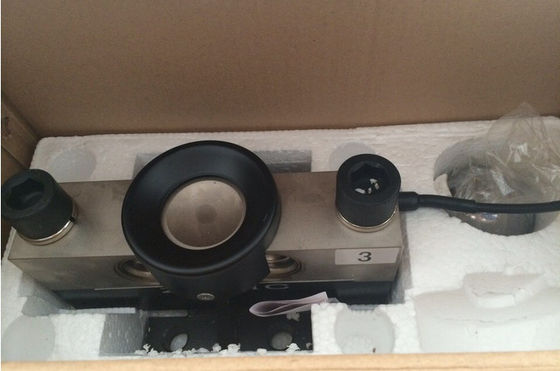

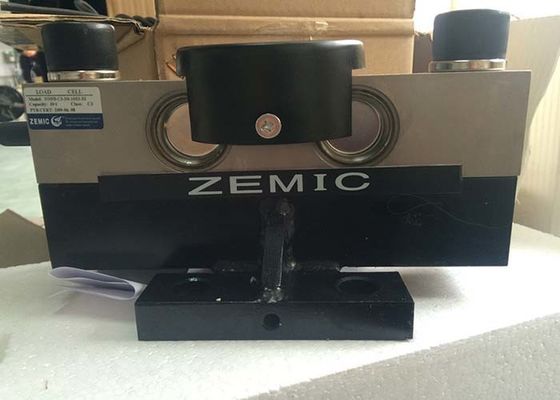

ZEMIC HM9B 30t double shear beam load cells for weighbridge, truck scale
Specifications:
| Capacity | t | 10/20/25/30/40SE/40/50 | ||||
| Accuracy | C1 | C2 | C3 | A5M | B10M | |
| Approvals | OIML R60 C3 | |||||
| Maximum number of verification intervals |
n max | 1000 | 2000 | 3000 | 5000 | 10000 |
|
Minimum load cell
|
v min
|
Emax/3000
|
Emax/5000
|
Emax/7500
|
Emax
|
Emax
|
| Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
| Creep | (%FS/30min) | ≤±0.038 |
≤±0.024
|
≤±0.016
|
≤±0.017
|
≤±0.040 |
| Temperature effect on sensitivity |
%FS/10℃)
|
≤±0.028
|
≤±0.017 |
≤±0.011
|
≤±0.013 | ≤±0.040 |
| Temperature effect on zero |
(%FS/10℃)
|
≤±0.047
|
≤±0.023
|
≤±0.015
|
≤±0.014
|
≤±0.020 |
|
Output sensitivity
|
mv/v)
|
2.0±0.002 |
2.3±0.002
|
2.4±0.002
|
1.9±0.002
|
1.8±0.002
|
| Input resistance | (Ω) | 700 ±7 | 775 ±5 | 750 ±7 | ||
| Output resistance | (Ω) |
(Ω) 700 ±7 |
||||
| Insulation resistance | (MΩ) | ≥ 5000(50VDC) | ||||
| Zero balance | (%FS) | 1.5 | ||||
| Temperature, compensated |
(℃)
|
-10~+40
|
||||
| Temperature,allowed |
(℃)
|
-35~+65
|
||||
| Excitation, Recommended |
(V)
|
5~12(DC)
|
||||
| Excitation,Max |
(V)
|
18(DC)
|
||||
| Safe overload |
(%FS)
|
150 | ||||
| Ultimate overload |
(%FS)
|
300 | ||||
Outline Dimension mm(inch):
Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.
Description:
1. HM9B load cell are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
Applications:
It is used in truck scale/weighbridge
Competitive Advantage:
1. OEM is available
2. 24 hours online service
3. Inquiry will be replied in 2 hours
4. One year warranty
5. 1% free spare part
6. Free parts for any breakdown with convincing evidence
